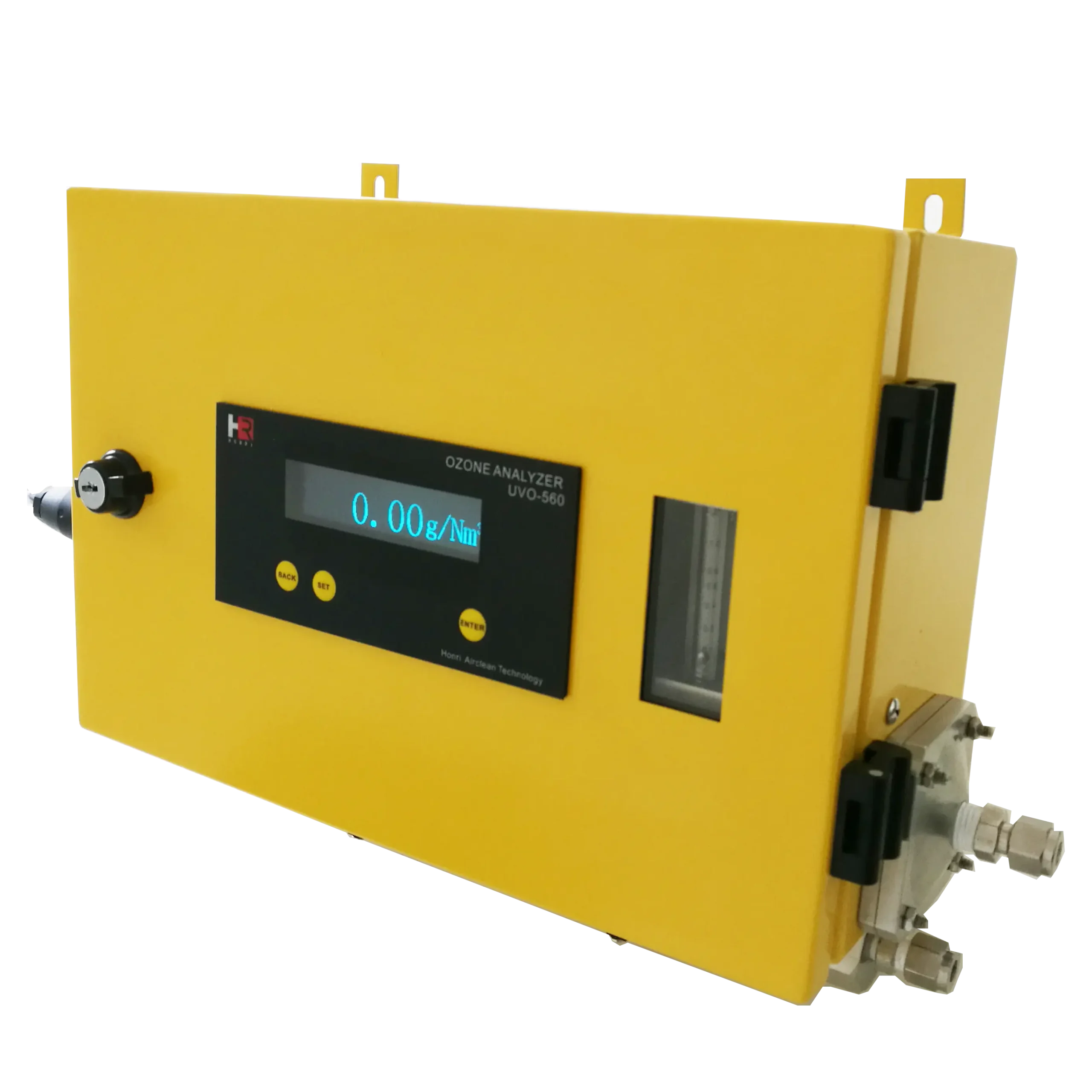

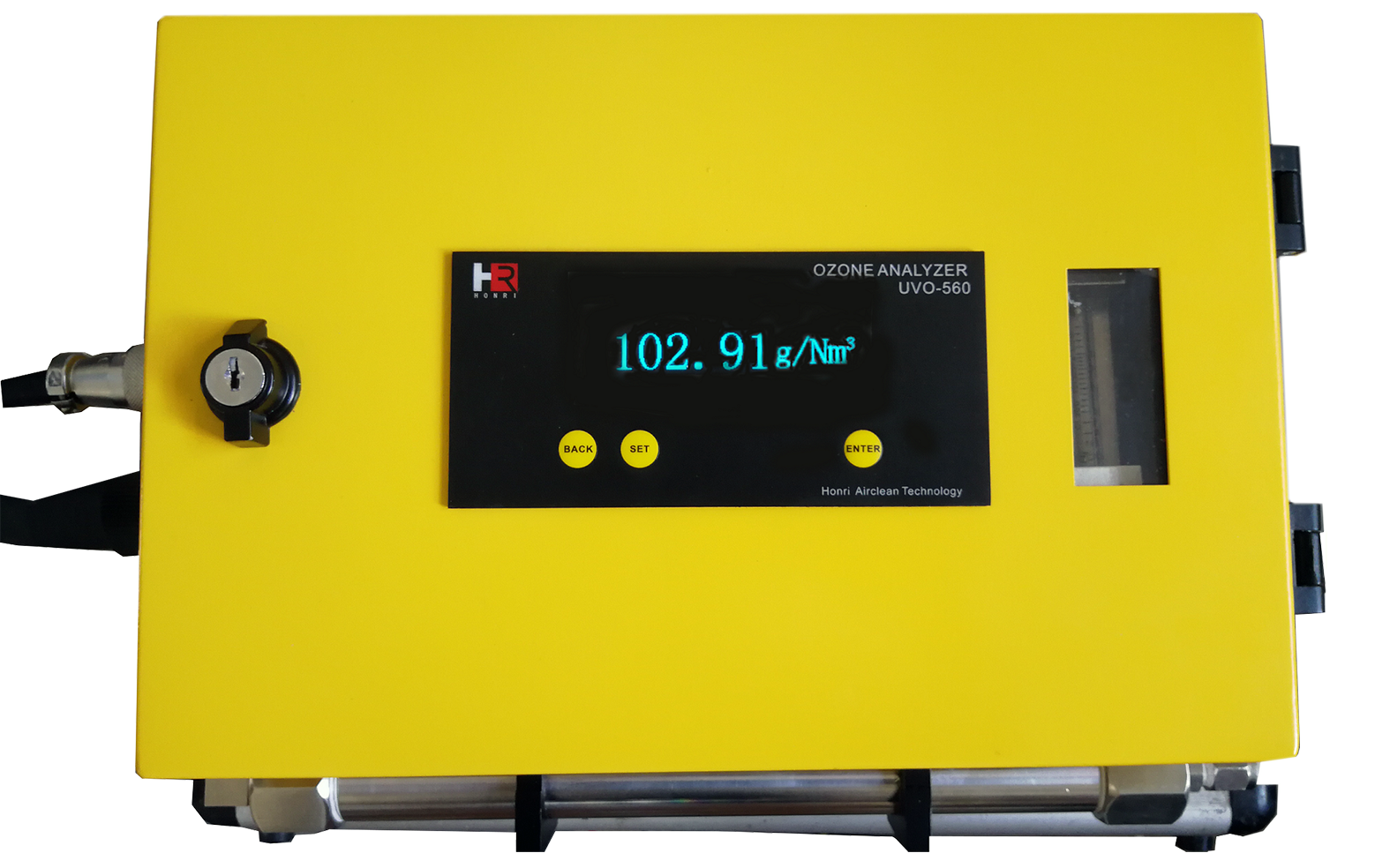

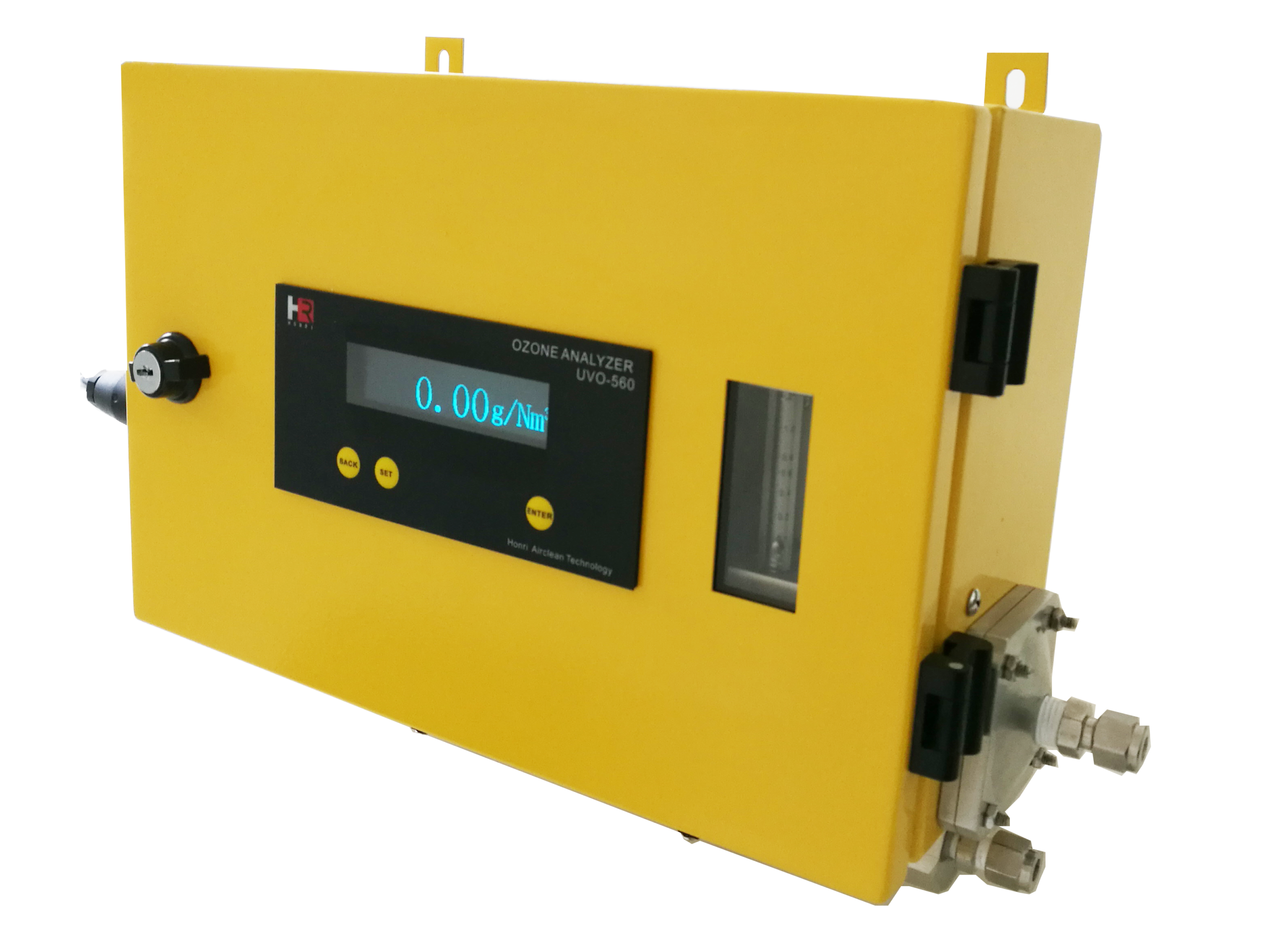

Product Overview
The UVO-560 is a high-precision analyzer designed to calculate ozone concentration based on the Beer-Lambert Law. By measuring the intensity change of ultraviolet light (254 nm) before and after absorption, it provides accurate and stable readings for high-concentration ozone environments. The instrument features a dual-channel optical system and an intelligent lamp management system, ensuring rapid stabilization and long-term reliability in demanding industrial applications.
Key Features
- Dual-Channel UV Optics: Advanced 254 nm dual-beam technology ensures superior stability and minimal drift.
- Intelligent Lamp Management: Optimized control system allows the UV lamp to reach operational status quickly after startup.
- Integrated Gas Control: Equipped with a built-in gas filter, regulating valve, and flow meter for comprehensive gas management.
- High-Pressure Resistance: Leak-proof design engineered to withstand inlet pressures up to 0.25 MPa.
- Safety Focused: Includes an integrated ozone exhaust gas processor to prevent hazardous leakage.
- Versatile Connectivity: Standard RS485 (Modbus) digital interface with 4-20mA and 0-10V analog outputs for easy system integration.
