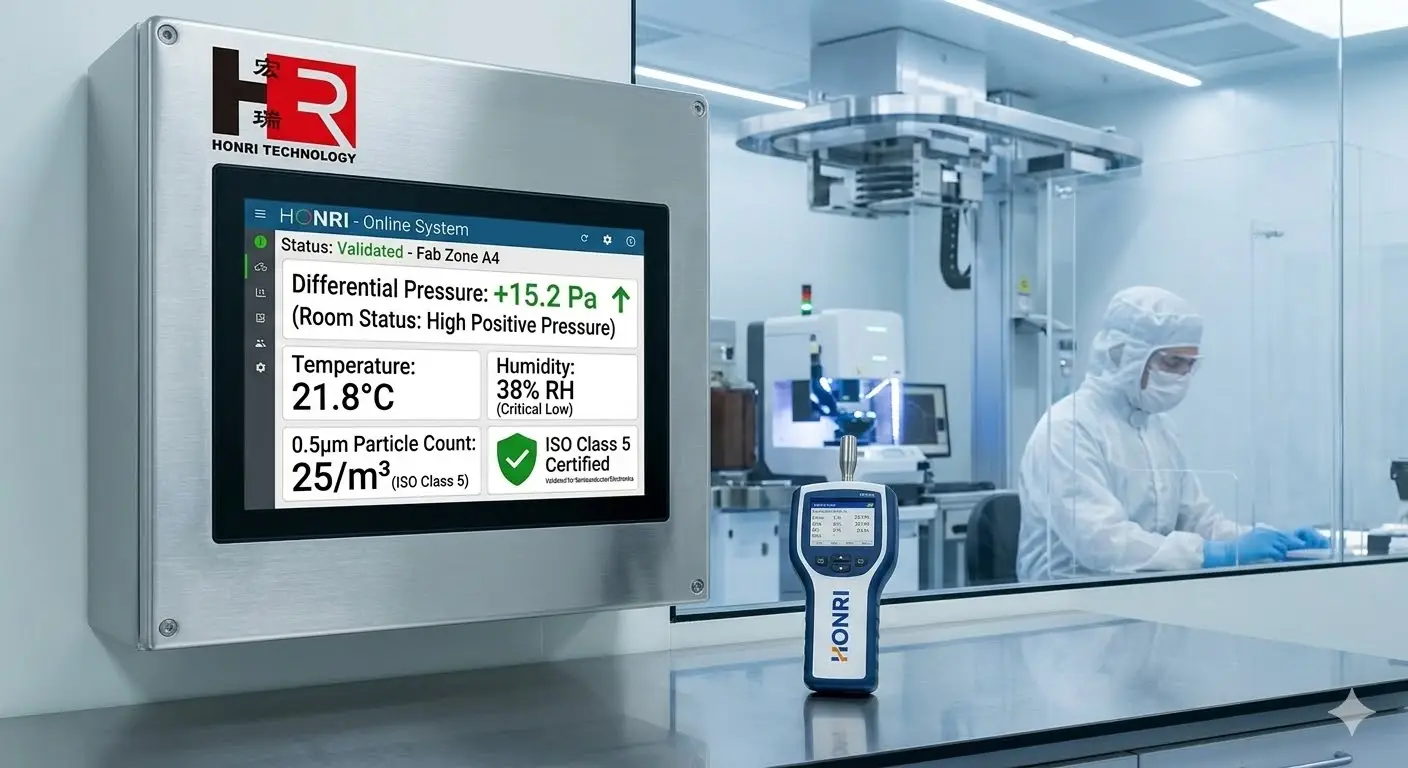

Semiconductor & Electronics HR-FMS Online Monitoring System Solution

Compliant with ISO 14644 / SEMI S2 / SEMI F21 / IEC 61340 Standards

1. SOLUTION OVERVIEW

The HR-FMS Semiconductor-Specific Environmental Monitoring System is engineered for high-precision scenarios including wafer fabrication, IC packaging/testing, and high-end electronic component production. The system strictly adheres to ISO 14644-1 (ISO Class 1–8), SEMI S2/S8 Safety & Environmental Guidelines, SEMI F21 AMC Control Standards, and IEC 61340 ESD Protection Standards. It provides 7×24H continuous monitoring of suspended particles (down to 0.1 μm), AMC, temperature, humidity, differential pressure, air velocity, and electrostatic potential.

2. CORE DESIGN PRINCIPLES

2.1 Risk-Based Classification & Sampling Design (ISO 14644-1:2015)

• Zoned Monitoring Strategy: Tailored monitoring plans based on cleanroom grades (ISO 1 to ISO 8). Core areas such as EUV Photolithography (ISO 1), 14nm Lithography (ISO 3), and Wafer Cleaning (ISO 4) feature high-density monitoring.

• Sampling Location Calculation: The minimum number of sampling locations (NL) is calculated strictly using the international standard formula:

NL = √A

Parameters:

• NL: Minimum number of sampling locations (rounded up to the next whole number).

• A: Cleanroom area (Unit: m²).

• Workstation-Level Monitoring: At least one monitoring point is dedicated to each critical process station, such as Lithography tracks, Etching tools, and Wafer Load Ports.

• Standardized Positioning: Probes are set at the product exposure height (0.8–1.2 m); locations must be ≥ 30 cm from walls and ≥ 1 m from HEPA filters.

2.2 Airflow Control & Isokinetic Sampling (SEMI S2 / ISO 14644-4)

• Isokinetic Sampling: Probes in ISO 1–5 unidirectional flow zones must be equipped with isokinetic heads to match the air velocity of 0.36–0.54 m/s, preventing particle deposition on wafer surfaces.

• Pressure Gradient Specifications: Ensures differential pressure ≥ 15 Pa between clean and non-clean zones, and ≥ 5 Pa between adjacent functional zones to block external micro-contaminants.

2.3 ESD Protection & Data Integrity (IEC 61340 / 21 CFR Part 11)

• Static Monitoring: Real-time tracking of electrostatic potential (0 to ± 20 kV) to prevent ESD damage to sensitive ICs and particle adsorption.

• Full Audit Trail: Strictly compliant with 21 CFR Part 11, ensuring all data collection, storage, and export processes are tamper-proof and fully traceable.

3. CORE HARDWARE CONFIGURATION

4. SOFTWARE SYSTEM CAPABILITIES

• Integrated Multi-Parameter Hub: Visualizes data grouped by ISO grades or process steps (Litho/Etch/Packaging).

• Intelligent Alert Mechanism: Features a 3-tier “Notice-Warning-Critical” system to ensure response within 1 minute of environmental drift.

• Automated Compliance Reporting: Generates encrypted PDF reports compliant with ISO 14644-1, SEMI F21, and 21 CFR Part 11 at the click of a button.

• Smart Factory Connectivity: Supports RS485, WiFi, and TCP/IP for seamless integration with MES or ERP systems to link environmental data with production yields.

5. STRATEGIC VALUE

1. Industry-Leading Compliance: Fully aligned with international ISO, SEMI, and IEC standards, facilitating smooth factory audits and supplier certifications.

2. Yield Protection: Continuous monitoring of sub-micron particles and ESD events significantly reduces the risk of wafer contamination and chip breakdown.

3. Data-Driven Failure Analysis: Provides tamper-proof, high-resolution environmental records to support root-cause analysis in product failure investigations.

4. Energy Efficiency Optimization: Aligns with ISO 14644-16 to optimize HVAC and filtration operation based on real-time data, reducing energy costs in high-grade cleanrooms.

Solution Provider: Suzhou Honri Purification Technology Co., Ltd. (Suzhou Honri Purification)
