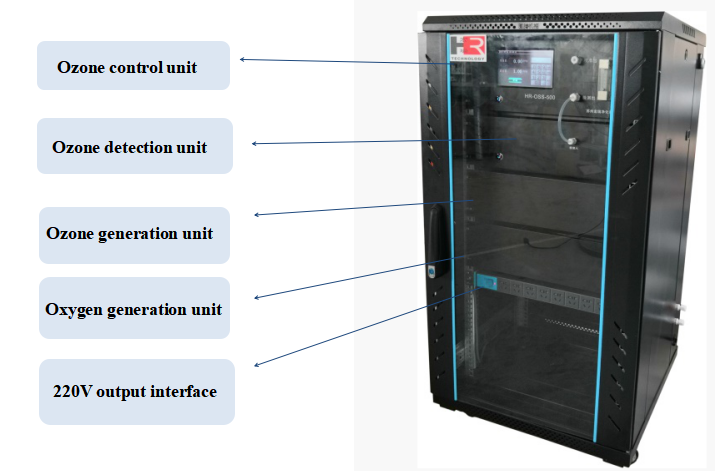

HR-OSS-500 Ozone Standard Generator

Product Overview

The HR-OSS-500 is a high-precision ozone standard generator engineered to provide a stable and accurate ozone source for the verification, calibration, and testing of ozone analytical instruments. Utilizing advanced PID control algorithms and high-precision mass flow controllers, it addresses the challenges of “on-site preparation” for ozone. The system allows users to set any concentration within the 1–500 PPM range, delivering exceptional repeatability and rapid response times that meet internationally advanced performance standards.

Key Features

• Advanced Processing: Powered by a 32-bit ultra-low power microprocessor for high-speed data processing and system stability.
• Precise Concentration Control: Employs sophisticated PID algorithms combined with high-precision mass flow controllers for accurate gas ratios.
• High-Efficiency Generation: Equipped with ultra-pure ceramic ozone tubes ensuring high conversion efficiency and an extended service life.
• Stable UV Source: Uses imported high-performance UV light sources for consistent ozone production.
• Integrated Safety: Features a built-in catalytic decomposition device to safely process excess ozone and prevent environmental pollution.
• Robust Hardware Protection: Includes comprehensive safeguards against over-voltage, over-current, electrostatic interference, and electromagnetic fields.
• Self-Sufficient Design: No oxygen source or consumables are required for ozone generation.
