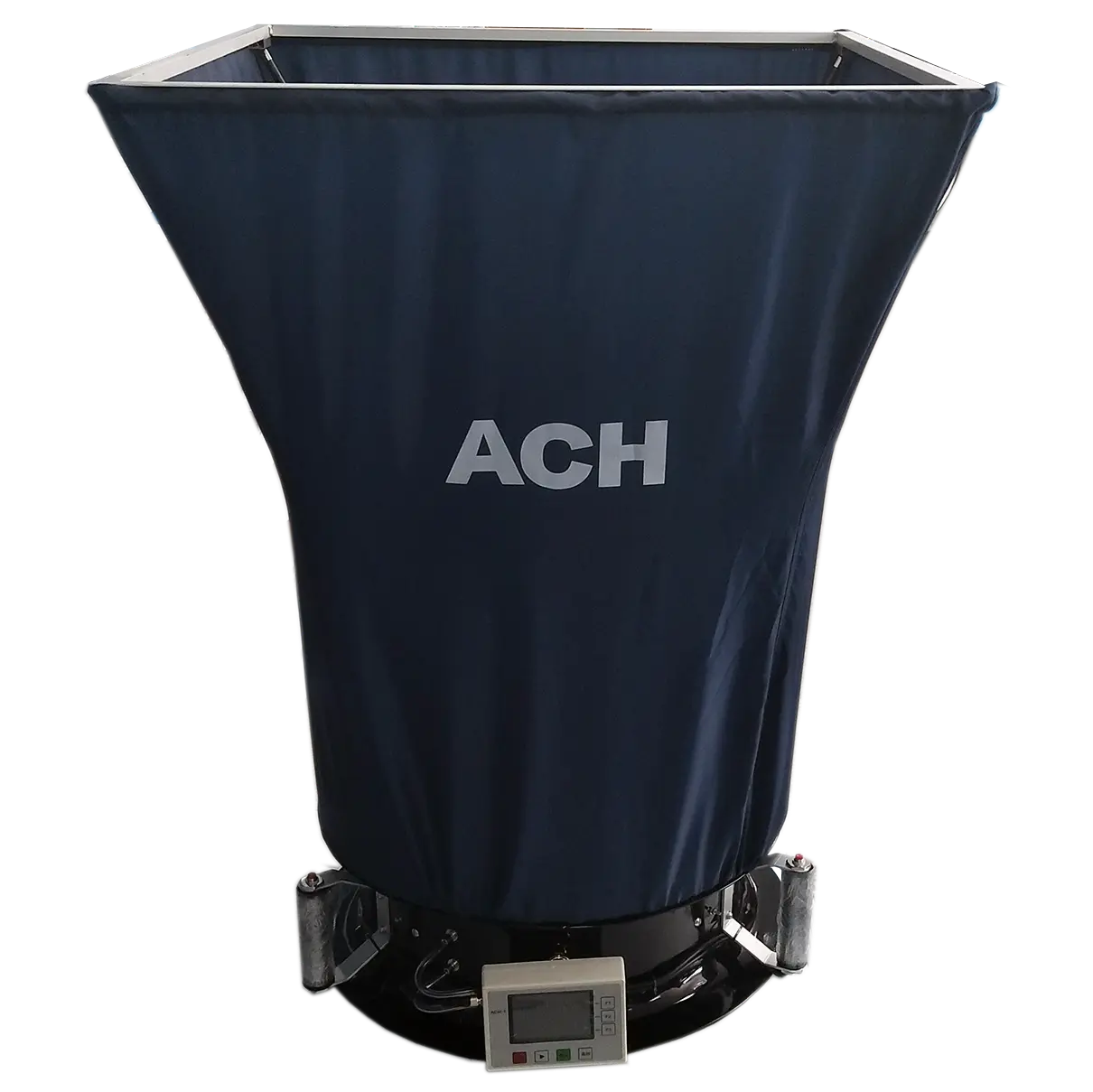

ACH-II Air Capture Hood

Product Overview

The ACH-II is a professional-grade instrument designed to measure the air volume flowing through diffusers, grilles, and air outlets. It provides high accuracy and reliability, simultaneously detecting air volume, velocity, temperature, and humidity. With its lightweight design and large data storage capacity, it is an essential tool for HVAC balancing and cleanroom validation.

Key Features

• Multi-Parameter Detection: Simultaneously monitors air volume, velocity, temperature, and humidity.
• Large Data Storage: Stores up to 64 groups of air volume data (72 points per group) and 2500 differential pressure records.
• Smart Data Export: Supports USB disk for data export and optional WiFi connectivity for printer data.
• User-Friendly Interface: High-resolution display with Chinese-English language switching and buzzer alarm function.
• Versatile Units: Instant conversion of displayed units between m³/h and ft³/min (CFM).
• Extended Operation: High-capacity lithium battery supports up to 6 hours of continuous field use.
